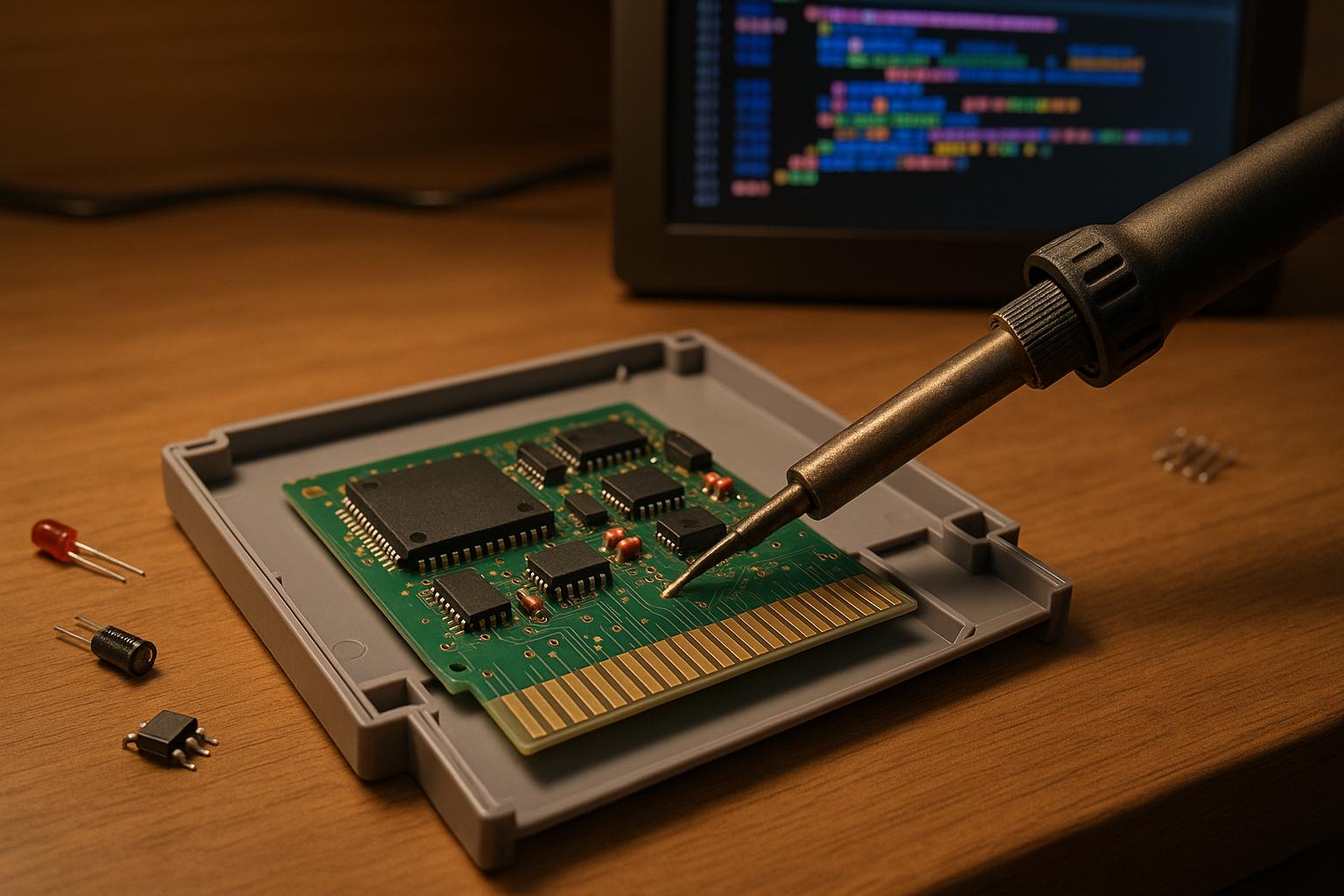

How Custom Game Cartridges Are Made

Custom game cartridges let you play fan-made or modified games on retro consoles like NES, SNES, or Sega Genesis. They’re built by programming game data onto memory chips, assembling components like circuit boards and cartridge shells, and adding custom labels. These cartridges work on original hardware and are popular among collectors and gamers for accessing rare or updated content.

Key steps in the process include:

• Choosing a platform and ROM: Select a console and a game file to use.
• Programming memory chips: Use an EPROM/flash programmer to load the game data.
• Assembling the cartridge: Attach the chip to a PCB, place it in a shell, and add a custom label.
• Testing: Ensure the cartridge works on the console and troubleshoot any issues.

Costs range from $100–$250 for tools and $15–$40 per cartridge. Beginners can start with donor cartridges or opt for new PCBs to preserve original games. Services like BJ’s Game Vault offer expert help and materials for DIY enthusiasts.

Required Tools and Materials

Tools for Cartridge Creation

To create custom game cartridges, you'll need a few essential tools. First up is an EPROM/flash programmer, which is used to write your game data onto the memory chip. These typically cost between $30 and $80. Another must-have is a soldering iron for attaching components to the circuit board; basic models are available for $15 to $40. A multimeter is also key, helping you test connections and troubleshoot electrical issues, with prices ranging from $10 to $25.

You'll also need precision screwdrivers to open cartridge shells and handle the small screws often found in retro gaming cartridges. A full set usually costs $10 to $20 and works for systems like the NES and Game Boy Advance. For professional-looking labels, you can either use a dedicated label printer (around $15 to $50) or go with a standard inkjet or laser printer paired with adhesive label sheets for a more economical option.

Materials You'll Need

The main materials for building cartridges include the circuit board, the memory chip, and the cartridge housing. Blank printed circuit boards (PCBs) or donor cartridges serve as the base. Blank PCBs, which avoid the need to repurpose original cartridges, cost $5 to $20 depending on the console. This approach helps preserve original games, as donor cartridges are becoming harder to find.

For storing your game data, you'll need EPROM or flash chips. To house your cartridge, you can use pre-made shells or opt for 3D-printed cases made with PETG filament, which allows for customization. For a polished look, you'll also need labels. If your game requires save functionality, you'll want to include batteries and compatible PCBs that support battery backup.

These materials come together to create a cost-effective setup for hobbyists.

Cost Breakdown

Here’s a quick summary of the costs involved: Setting up your workspace for custom cartridge creation typically costs between $100 and $250, making it an affordable hobby. Essential tools include:

• EPROM/flash programmer: $30–$80
• Soldering iron: $15–$40
• Multimeter: $10–$25
• Precision screwdrivers: $10–$20
• Label printing supplies: $15–$50

The cost per cartridge is much lower, usually falling between $15 and $40. A typical cartridge might include:

• Blank PCB: $5–$20
• EPROM chip: $2–$10
• Cartridge shell: $5–$15
• Custom label: $1–$5
• Optional battery for save features: $1–$3

If you're just starting out or want professional results without buying all the tools upfront, BJ's Game Vault offers materials and expert guidance for building cartridges. They specialize in systems like NES, SNES, Sega Genesis, N64, and GBA. Their custom game creation services are perfect for beginners, allowing you to dive in and upgrade your setup as you gain experience.

Step-by-Step Creation Process

Choosing Your Platform and ROM

The first step in building a custom cartridge is deciding which console platform to work with. Popular options for beginners include NES, SNES, Game Boy Advance, N64, and Sega Genesis. These consoles are often chosen because their hardware is well-documented, and there are plenty of resources available to guide you. NES and Game Boy Advance are particularly beginner-friendly due to their simpler design.

Once you've chosen your console, you'll need to obtain a ROM. Using tools like Joey software, you can create a legal backup of a cartridge you own. It's important to ensure you're working with a ROM you have the rights to.

Most custom cartridge builders work with ROM hacks - versions of existing games that have been modified to include new levels, characters, or features. Another option is creating a homebrew game from scratch using tools like NESmaker. For example, "Mischief Castle" is a newly developed 8-bit game designed specifically for the NES. Once you have your ROM ready, you can move on to programming the memory chip.

Programming Your Chip

With your ROM file in hand, the next step is to program it onto a memory chip. Start by connecting your EPROM or flash chip to a programmer device, ensuring the chip is securely seated in the socket. Most programmers include software that walks you through the process step by step.

Load your ROM file into the programmer's software, select the correct chip type from the menu, and double-check the chip profile to avoid errors. The actual programming process usually takes between 2 and 10 minutes, depending on the size of the ROM and the type of chip you're using.

After programming, use the verification function in your programmer’s software to compare the data on the chip with your original ROM file. If the verification fails, recheck your connections or try programming the chip again. Many programmers also feature a blank check option to confirm the chip was properly erased before programming. Once your chip is programmed and verified, you’re ready to attach it to the PCB.

Assembling and Customizing the Cartridge

The next step is assembling your cartridge. Begin by soldering the programmed chip to the PCB. If you're new to soldering, practice on spare components first to get the hang of it. Set your soldering iron to 350°F and work carefully, ensuring each pin is securely connected. Using chip sockets can make testing and replacing the chip easier.

Once the chip is soldered in place, fit the PCB into the cartridge shell. If you're using a custom PCB, you might need to source or 3D-print a compatible shell. Donor cartridges, on the other hand, often come with their original housings. Make sure all components fit snugly and that the connector pins align properly with the shell's opening.

To give your cartridge a polished look, design a custom label using software like Photoshop or GIMP. Set your canvas to the correct dimensions - for instance, 1,380 x 687 pixels for Game Boy Advance cartridges. Print the label on adhesive paper using a high-quality printer, laminate it for durability, and carefully cut it to size. Apply the label to the cartridge shell for a professional finish.

Testing Your Custom Cartridge

The final step is testing your cartridge on the console. If it boots up and runs smoothly, congratulations - you’ve successfully built your custom cartridge! If your game includes save functionality, make sure to test both saving and loading to confirm the battery backup is working properly.

If you encounter issues, such as display glitches, audio problems, or gameplay errors, these might point to programming mistakes, poor solder connections, or an incompatible ROM file. If the cartridge doesn’t boot at all, check that the chip is securely seated and inspect all solder joints for issues.

A multimeter can be a lifesaver for troubleshooting. Use it to test for continuity between the chip pins and the cartridge connector. Sometimes, a single bad solder joint can cause the entire cartridge to fail. If you used chip sockets during assembly, try reseating the chip or replacing it with a backup that has been freshly programmed. With a little patience and troubleshooting, you’ll have a fully functional custom cartridge in no time.

Make N64 Repros At Home (No soldering/wiring/skills required!)

sbb-itb-9a4764e

Donor Cartridges vs. Custom PCBs

After covering the tools, materials, and assembly steps earlier, the next big decision in creating custom game cartridges is choosing the right circuit approach. You have two main options: donor cartridges or custom PCBs. Donor cartridges involve repurposing an original game cartridge by replacing its ROM chip with your programmed chip. On the other hand, custom PCBs are brand-new circuit boards designed specifically for reproductions or homebrew projects, allowing you to preserve vintage hardware.

Your choice between these two methods will affect the cost, difficulty, and overall quality of your project. By understanding the differences, you can align your decision with your budget and goals, whether you're prioritizing affordability or preservation.

Pros and Cons of Each Method

Each approach has its own set of strengths and weaknesses:

Donor cartridges are a budget-friendly way to get started. Many common donor titles can be found for under $10, and because they use the original shell and connector, they provide an authentic look and feel. However, this method involves sacrificing original hardware, which may not sit well with collectors or those focused on preservation.

Custom PCBs, while more expensive upfront, offer better long-term value. Companies like Mouse Bite Labs produce PCBs tailored to specific NES mappers, allowing for precise reproductions without damaging vintage hardware. You’ll likely need to source or 3D-print a compatible cartridge shell for these boards, typically costing $10–$20, but the end result is more consistent and reliable. This makes custom PCBs perfect for projects requiring multiple copies or advanced features.

When to Use Each Option

Go with donor cartridges if you're just starting out, working on a small-scale project, or trying to minimize costs. This method is also a great way to practice soldering or test a ROM hack before committing to a larger production run. It’s a practical choice for one-off projects or when using non-collectible, easily available games.

On the other hand, custom PCBs are the way to go if preservation is a top priority or if you're working with rare or valuable cartridges that you don’t want to modify. They’re also ideal for homebrew games or when you need consistent, professional-quality builds for multiple copies.

Timing and availability are also key factors. If you already have a donor cartridge on hand, you can start your project right away. Custom PCBs, however, often involve ordering parts and waiting for them to arrive, which may extend your timeline.

For those who want expert help, BJ's Game Vault offers custom cartridge creation services, along with high-quality components for DIY enthusiasts. Whether you're aiming for an authentic reproduction or a unique ROM hack, they can guide you through the process and even handle the assembly if needed.

Tips and Troubleshooting for Beginners

Starting your first custom cartridge project might feel overwhelming, but most challenges can be resolved with straightforward solutions. By understanding common issues and following basic safety practices, you can avoid unnecessary setbacks. Begin with simpler projects to develop your skills before tackling more advanced builds.

Common Issues and Solutions

Beginners often encounter three main problems: boot errors, save failures, and physical connection issues. Each has telltale signs that can help you identify and fix the problem quickly.

Boot errors typically arise from incompatible ROMs, faulty programming, or poor solder joints, preventing the game from starting. First, ensure your ROM is compatible with the PCB or donor cartridge you're using. Check solder joints for any flaws, and confirm your memory chip is programmed correctly and hasn't been damaged by static electricity.

Save failures can be especially frustrating, as they may not become obvious until you've already invested time in playing. Corrupted save data or an inability to save progress often stem from issues with memory chips, missing battery backups, or incorrect wiring. Make sure you're using the right type of save memory for your game. If the game relies on a battery backup, verify that the battery is fresh and properly installed. Also, inspect all wiring connections to the save chip - just one loose wire can cause problems.

Physical connection issues occur when cartridges don't fit properly or aren't recognized by the console. This is often due to 3D-printed shells with slightly off dimensions. Test-fit your cartridge and adjust the shell as needed. Additionally, clean the connector pins with isopropyl alcohol to improve electrical contact.

Using chip sockets during testing can make troubleshooting easier by allowing you to swap out memory chips or test different ROMs without additional soldering. Always follow basic safety guidelines while addressing these issues.

Safety and Best Practices

Set up your workspace in a well-ventilated, static-free area with a properly grounded soldering station. Use an anti-static wrist strap and store sensitive components in anti-static bags. Keep a damp sponge handy to clean your soldering iron tip, and ensure your station maintains consistent temperature control to protect your components.

When working with U.S. power outlets, confirm that your soldering station and other equipment are properly grounded. Keep liquids away from your workspace, and ensure your hands are dry. If you're using a hot air station for surface-mount work, carefully monitor the temperature to avoid damaging components or the PCB.

Test your work frequently throughout the build process. Don’t wait until everything is assembled to check for issues. Use a multimeter for continuity checks and test-fit components as you go. Catching problems early makes them much easier to fix.

Start with Simple Projects

Once you're comfortable with troubleshooting and safety practices, start with simpler projects to build your confidence. NES or GBA donor cartridge projects are great for beginners. These focus on essential skills like desoldering, chip programming, and reassembly without requiring complex wiring or rare components.

For example, a beginner NES project might involve removing the original ROM chip from a donor cartridge and replacing it with a programmed EPROM. All you need are basic tools like a soldering iron, solder, a screwdriver, and desoldering braid. This type of project helps you master the fundamentals without unnecessary complications.

Avoid diving into advanced systems like SNES or N64 right away. These often require a deeper understanding of memory mappers and custom PCBs, introducing more variables and potential troubleshooting headaches.

If you’re looking for expert guidance, BJ's Game Vault offers custom cartridge creation services and high-quality components for DIY enthusiasts. Their retro-tested parts and community resources can help you sidestep common pitfalls and set you up for success.

Conclusion

Custom game cartridges combine technical expertise with a touch of creativity, allowing rare ROM hacks and homebrew games to come alive on original consoles. This process turns blank components into fully functional cartridges, bridging the gap between modern ingenuity and retro gaming hardware.

Key Takeaways

The journey to creating custom cartridges involves a series of straightforward steps: selecting your platform and ROM, programming the chip, assembling the cartridge (using either a donor PCB or a custom board), designing and applying labels, and thoroughly testing the final product. Each step builds upon the last, making the process accessible even for beginners willing to learn basic soldering and electronics.

Custom PCBs are shaping the future of cartridge creation, offering consistency and flexibility while preserving the essence of original games. Donor cartridges, while nostalgic, often sacrifice original titles, whereas modern prefabricated PCBs simplify the process and make it more beginner-friendly. For those just starting, platforms like the NES or GBA are excellent choices. They require fewer specialized components and provide plenty of room for experimentation, helping to build confidence and essential skills. The reward? The unparalleled satisfaction of playing a game you’ve built yourself on authentic hardware.

With these insights, you’re ready to dive into retro gaming projects, whether independently or with expert assistance.

How BJ's Game Vault Can Help

BJ's Game Vault is a go-to resource for retro cartridge enthusiasts, offering everything needed to bring custom cartridge projects to life. From blank PCBs and cartridge shells to professional custom game creation services, they provide high-quality, retro-tested components to ensure compatibility and reliability, eliminating the frustrations of subpar materials.

For beginners who might feel overwhelmed, BJ's Game Vault offers custom cartridge creation services starting at approximately $30, with costs varying based on the platform and complexity. This service allows newcomers to experience the joy of custom cartridges while learning the ropes before attempting their own builds.

Their inventory includes rare ROM hacks and reproduction titles for systems like the NES, SNES, Sega Genesis, N64, and GBA. These examples not only inspire but also demonstrate the level of quality achievable with the right tools and techniques. With free shipping and responsive support, BJ's Game Vault ensures that every part is retro-tested and console-ready.

Whether you’re ready to jump into your first custom cartridge project or prefer to start with professionally crafted examples, the tools and knowledge are at your fingertips. The growing community of custom cartridge creators continues to expand what’s possible, preserving the magic of retro gaming for future generations.

FAQs

What are the benefits of using custom PCBs instead of donor cartridges when making custom game cartridges?

Using custom PCBs to create custom game cartridges brings a host of benefits compared to repurposing donor cartridges. For starters, these PCBs are tailored specifically for the game you’re developing, ensuring optimal compatibility and performance. Plus, they allow you to avoid dismantling vintage cartridges, which helps preserve the legacy of classic gaming.

On top of that, custom PCBs often include modern upgrades like better durability, support for larger ROM sizes, and improved save battery systems. These features make them a dependable and forward-thinking option for crafting top-notch custom cartridges.

How can beginners make sure they're using legal ROMs for custom game cartridges?

When making custom game cartridges, it's crucial to use ROMs that are legally acquired. Stick to ROMs from games you personally own or those officially released by the copyright holder for free use. Downloading or sharing ROMs without permission could breach copyright laws.

To avoid any issues, get your ROMs from reliable platforms or services that clearly confirm their legality. If you're uncertain, reach out to the copyright holder or explore resources that promote legal retro gaming. Supporting intellectual property rights helps ensure the retro gaming community remains strong and vibrant!

What should I do if my custom game cartridge isn’t working on my console?

If your custom game cartridge isn’t working as expected, here are a few steps you can take to figure out what might be wrong:

• Clean the connectors: Dust or grime can mess with the connection between the cartridge and the console. Use a soft, dry cloth or a cartridge cleaning kit to carefully clean the metal connectors on both the cartridge and the console.
• Look for physical damage: Check the cartridge for any signs of issues, like bent pins, cracks, or other damage. If you spot something, professional repair might be necessary.
• Check compatibility: Make sure the cartridge is made for your specific console model. Some custom cartridges may not work with certain versions or regional variations of a console.
• Try it on another console: If you can, test the cartridge on a different console. This will help you figure out if the problem is with the cartridge or your system.

If these steps don’t solve the issue, consider contacting the cartridge creator or a service like BJ’s Game Vault, which specializes in retro gaming and custom cartridge repairs. They might be able to help get things back on track.
