RGB Modding Services for NES Consoles
Want your NES to look sharp on modern TVs? RGB modding upgrades the NES’s video output, delivering vibrant colors and crisp visuals far superior to its original composite signal. Using the NESRGB kit, this modification enhances gameplay quality and enables compatibility with modern displays via upscalers like RetroTINK.
Here’s what you need to know:
- What it is: RGB modding replaces the NES’s composite output with a direct RGB signal for sharper images and better color accuracy.
- Why you need it: Composite signals look blurry on HDTVs. RGB modding eliminates this, offering clean visuals and reduced lag.
- Why hire a pro: The process involves delicate work like de-soldering the PPU chip, which can damage your console if done incorrectly.
- Costs: Professional services range from $165 to $200 (plus the NESRGB kit). Add-ons, like capacitor replacements, can increase the total.
- Extras: Options include palette switching, expansion audio for Famicom games, and SNES-style Multi-Out ports for flexible connections.
If you’re serious about retro gaming, an RGB modded NES paired with the right upscaler and accessories can transform your experience.
Front Loader NESRGB Multiout Install - Add a MULTIOUT to Your Front Loader!
sbb-itb-9a4764e
What to Look for When Choosing an NES RGB Modding Service
After exploring the benefits of RGB modding, it's time to focus on how to pick the right service to get the most out of your NES. Key factors like supported models, available features, pricing, turnaround time, and warranties play a big role in making the right choice. Let’s break down what you need to know before committing.
Supported NES Models and Compatibility
Most professional RGB modding services cater to a variety of NES models, including the Front-Loading NES (NES-001), Top-Loading NES (NES-101), Original Famicom, AV Famicom, and Sharp Twin Famicom. The NESRGB mod is designed to work with both NTSC and PAL systems, so it’s compatible with consoles from different regions.
Before moving forward, confirm your specific NES model. This matters because installation requirements vary - front-loading NES consoles use Phillips screws, while top-loaders and AV Famicoms need a 4.5 mm gamebit screwdriver. These differences can affect both the complexity of the installation and the overall cost.
Included Features and Hardware
The centerpiece of any RGB mod is the NESRGB board (version 4), which comes equipped with a built-in audio/video amplifier and a de-jitter feature. Most services provide options for output connectors, such as an 8-pin mini-DIN port or a Nintendo-style Multiout connector. The latter is particularly convenient if you already own SNES RGB cables.
Another standout feature is the palette switch, which allows you to toggle between the original NES, PlayChoice-10, and enhanced color palettes. This can usually be controlled via a physical switch or through controller inputs. For those looking to enhance audio, some services offer optional upgrades like "fake stereo" effects or expansion audio restoration for Famicom games.
Keep in mind that many modding services require you to purchase the NESRGB kit separately from its creator, Tim Worthington, before sending in your console. For example, RetroFixes explicitly states that the kit must be bought beforehand. Always double-check what’s included in the service price to avoid unexpected costs.
Pricing, Turnaround Time, and Warranty
The cost of RGB mod installation generally falls between $99.00 and $200.00 USD, depending on the service provider and your console model. For a more comprehensive upgrade, including capacitor replacements, prices typically start at $175.00 USD. Adding a full system recap service can increase the total by around $50.00 USD. Combining the RGB mod with a recap is often a smart move for aging consoles.
It’s worth noting that top-tier modding services are often in high demand. Some providers may list their services as "Sold Out" or temporarily pause new orders due to high workloads. Always reach out to confirm the current turnaround time before placing an order.
Customer reviews can offer valuable insights into the quality of these services. For instance, RetroFixes boasts a 4.8 out of 5-star rating based on 242 reviews, while 1upRestorations consistently receives praise for their installation quality. Many customers mention that while the process might take longer than expected, the clear communication and end results make the wait worthwhile.
With these points in mind, you’ll be better prepared to evaluate specific service providers in the next section.
Professional NES RGB Modding Services

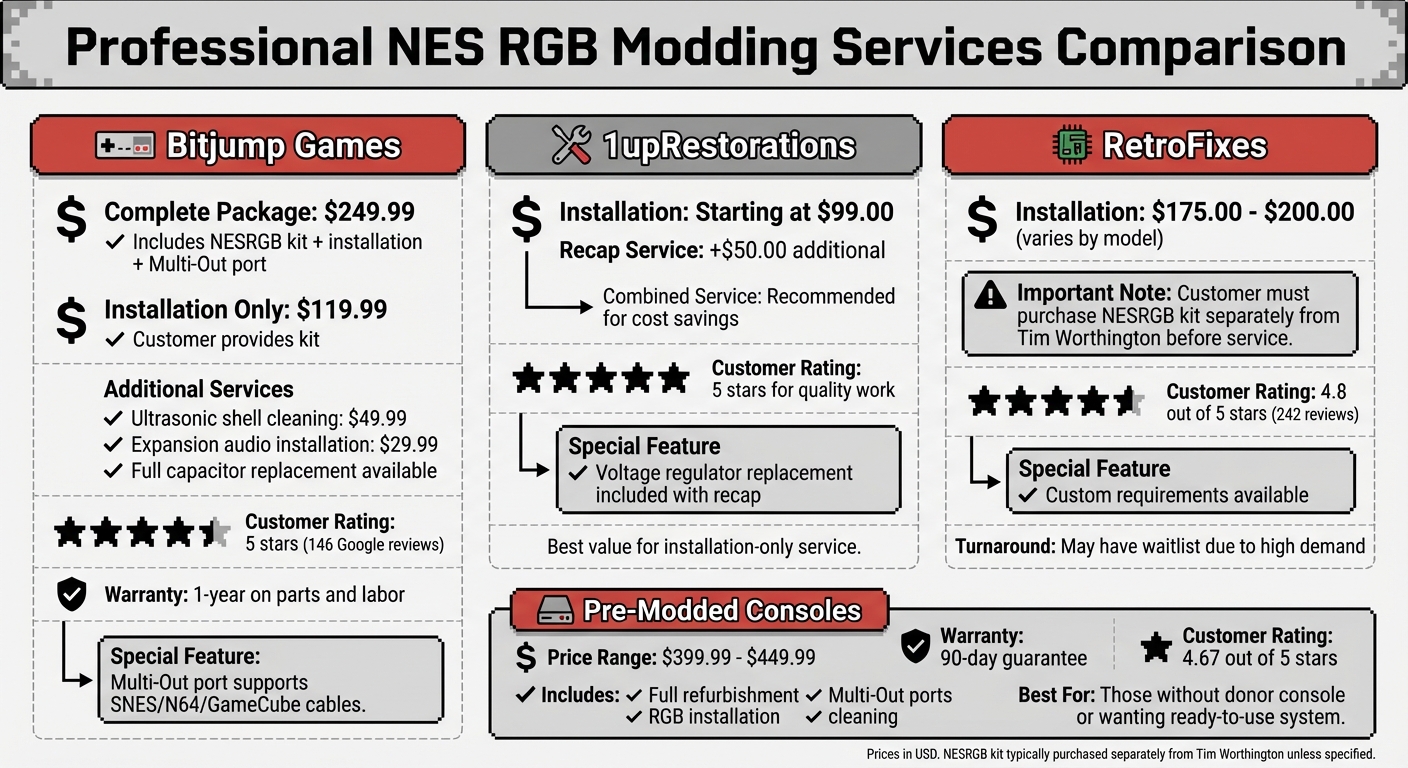

NES RGB Modding Services Comparison: Pricing, Features, and Warranties
Let’s take a closer look at some of the top providers for NES RGB upgrades. These services ensure compatibility, deliver high-quality results, and include reliable warranties to back their work.

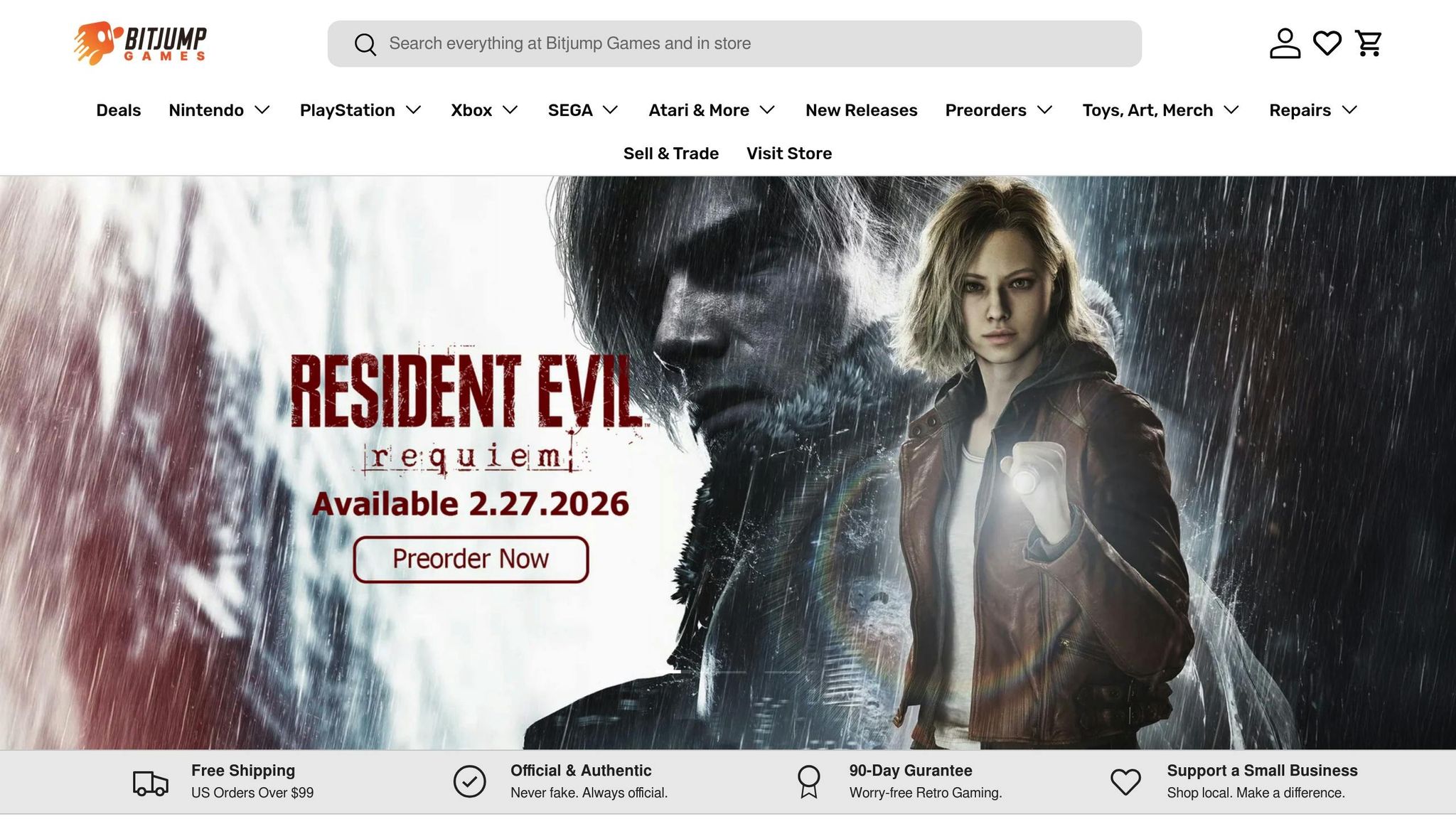

Bitjump Games NES Repair and RGB Installation
Bitjump Games offers a comprehensive package for NES RGB modding. Their $249.99 bundle includes the NESRGB kit, installation, and a Multi-Out port, which supports standard SNES, N64, or GameCube AV cables. If you already own the NESRGB kit, you can opt for their installation-only service at $119.99.
Beyond RGB mods, they provide additional services like ultrasonic shell cleaning for $49.99 and a full capacitor replacement (recap). They also offer optional expansion audio installation for $29.99, which unlocks extra sound channels found in certain Famicom games and modern flashcarts like the EverDrive.
With a 5-star rating from 146 Google reviews, Bitjump is a trusted provider. They back their upgrades with a 1-year warranty on parts and labor. Their service description highlights the NESRGB kit as "the premier video upgrade for the Nintendo Entertainment System, replacing the console's composite output with sharp, true RGB for vastly improved clarity and color accuracy".
NESRGB Installation and Recap Packages
Many experts recommend bundling RGB installation with capacitor replacement. Since the console needs to be fully disassembled for the mod, this combined service saves on future shipping costs and addresses two essential upgrades at once.
- 1upRestorations: Installation starts at $99.00, with recap services available for an additional $50.00.
- RetroFixes: Installation ranges from $175.00 to $200.00, but customers must purchase the NESRGB kit separately from Tim Worthington before sending in their console. RetroFixes has a 5-star reputation for quality work, and their pricing varies depending on your NES model and custom requirements.
Typically, these services include voltage regulator replacements alongside capacitor swaps to ensure long-term reliability.
Pre-Modded RGB NES Consoles
For those who don’t have a donor console or prefer a ready-to-use system, several providers sell pre-modded NES consoles. These systems are fully refurbished, include RGB installation, Multi-Out ports, and cleaning services, and are priced between $399.99 and $449.99.
Bitjump Games offers pre-modded consoles with a 90-day guarantee and an average customer rating of 4.67 out of 5 stars. One satisfied customer, Justin Bowen, shared:
Just got mine delivered and it's a night and day difference with the RGB mod! ... Look how crisp Mario looks like with the RGB mod!
Pre-modded systems provide a hassle-free solution for collectors and retro gaming enthusiasts. They typically include all necessary cables and documentation, making them an excellent choice for anyone new to RGB mods.
How NESRGB Modding Works
Getting a grasp on how the NESRGB board operates and is installed helps explain why professional modding services can elevate your retro gaming experience.

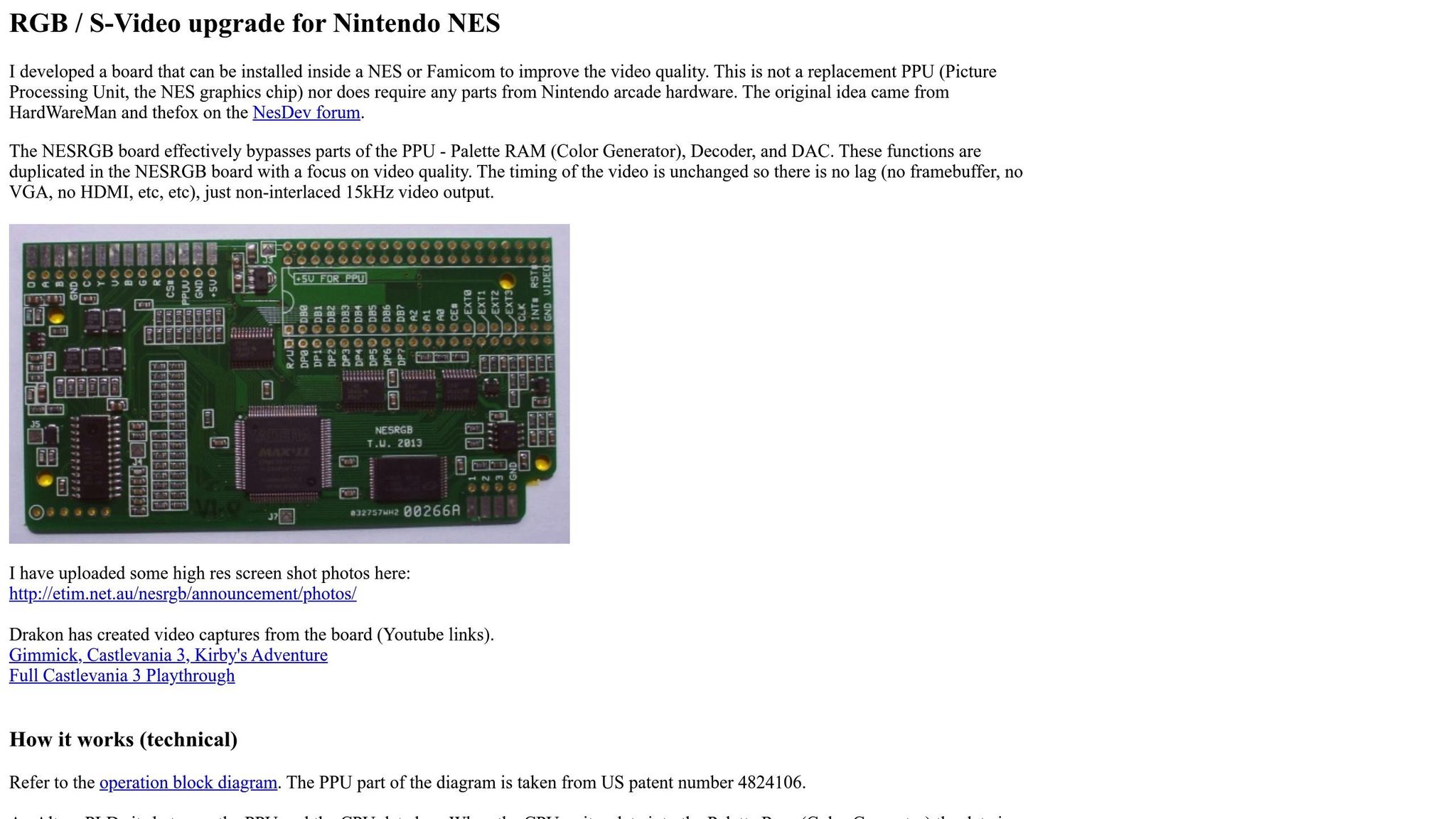

How the NESRGB Board Works
The NESRGB board, created by Tim Worthington, is a game-changing internal modification for the NES. It replaces the console's original video output circuitry to deliver a high-quality RGB signal, all while preserving the original video timing - so there’s no lag to worry about. Using a programmable logic device (CPLD or FPGA in version 4), the board processes data from the PPU and CPU.
First released in 2013, the NESRGB was a breakthrough because it eliminated the need to source rare chips from Nintendo arcade hardware. It outputs a clean, non-interlaced 15kHz video signal, and beyond RGB, it also supports S-video and improved composite video, both encoded from the RGB signal. You can even switch between three color palettes: “Natural” (based on Nestopia for a classic composite look), “Improved” (offering more color variety from FCEUX), and “Garish” (reminiscent of the PlayChoice-10 arcade style).
Installation Steps
Installing the NESRGB board is a precise process that requires expertise and the right tools to safely integrate it into the console.
Professional installation, which typically takes about 7–10 days, involves several steps and specialized equipment. The most challenging part? Removing the original PPU from the motherboard. This step demands careful desoldering using professional-grade tools like the Hakko 808, as some pins are connected to a heat-dissipating copper plane that requires extra attention.
Once the PPU is safely removed, the installer mounts it onto the NESRGB board using a 40-pin socket. They then configure solder jumpers to set region and feature options and complete the wiring for the output connectors. Most setups include a SNES-style Multi-Out port, which works with standard SNES RGB or component cables.
Additional Output and Customization Options
Professional services often go beyond the standard RGB setup, offering a variety of enhancements to improve both video and audio quality.
For example, the de-jitter function, available in firmware version 2 and later, addresses timing issues that can cause flickering on modern displays or upscalers. Some installers also add a 3.5mm audio jack for dedicated audio output, which reduces buzzing caused by video noise.
You can also opt for audio upgrades like expansion audio restoration, typically priced around $29.99. The NESRGB board itself features a built-in audio amplifier, which significantly boosts sound quality - especially for Famicom systems that lack standard A/V outputs. Additionally, some services offer low-pass filters using the THS7374 chip to minimize video noise, with settings adjustable via jumpers on the board.
Building a Retro Gaming Setup with RGB-Modded NES Consoles
Creating the ultimate retro gaming setup means making the most of your upgraded video output. To do this, you'll need the right display equipment, a solid game collection, and practical solutions tailored for U.S. gamers.
Connecting RGB-Modded NES Consoles to Modern Displays
RGB-modded NES consoles output a 240p (256×240 resolution) analog signal, which modern TVs often struggle to handle correctly, leading to distorted images. To enjoy the crisp visuals your RGB mod offers, you’ll need an upscaler to convert the 240p signal into 720p or 1080p.
For an entry-level option, the RetroTINK 2X Mini (around $79) is a great choice. If you’re looking for something more advanced, the RetroTINK 5X/4K offers higher-end features. Another favorite among retro gaming enthusiasts is the Open Source Scan Converter (OSSC), known for its low-lag line multiplication.
When paired with the right upscaler, users report exceptionally sharp images, making your retro games look better than ever. Once your visuals are sorted, expanding your game library is the next step to fully enjoy your setup.
Expanding Your Game Library with Custom Cartridges
An RGB-modded console truly comes to life with a diverse and exciting game library. BJ's Game Vault (https://bjsgamevault.com) is a go-to source for rare ROM hacks and custom NES cartridges that take full advantage of your upgraded video output. They offer reproduction versions of vintage classics as well as fan-made games that were never released during the NES’s original era.
To make things even better, BJ's Game Vault provides retro-tested items and free shipping on all orders, making it easy to grow your collection. They also offer custom game creation services, allowing you to design personalized cartridges tailored to your preferences.
With a collection of unique games in hand, your retro gaming experience will feel fresh and exciting.
Considerations for U.S. Retro Gamers
For U.S. gamers, there are a few additional hurdles to overcome when setting up your system. Most modern American TVs don’t feature SCART inputs, so you’ll need component cables or an HDMI upscaler. For a simple, plug-and-play solution, the RAD2x HDMI cable is an excellent option if your console has a Multi-Out port.
Another essential hardware upgrade is replacing the front-loading NES’s cartridge connector with a 72-pin connector. This upgrade eliminates the dreaded blinking screen problem that many older consoles suffer from.
Given the NES's age, consider investing in a recap service (approximately $50) to replace aging capacitors and voltage regulators. This maintenance step ensures stable performance, preventing issues like power fluctuations, video instability, and audio glitches that could interfere with your upgraded visuals.
Conclusion
Upgrading your NES with professional RGB modding turns it into a high-definition retro gaming powerhouse. The NESRGB kit provides an analog video signal that delivers sharp pixels and vibrant colors, far beyond the capabilities of the original composite output. Along with this mod, routine maintenance ensures your console remains in top condition for years to come.
Opting for professional services means the intricate work is handled with care, and warranties safeguard your investment for added peace of mind.
To truly make the most of your upgraded console, pairing it with a thoughtfully chosen game library is key. BJ's Game Vault (https://bjsgamevault.com) offers rare ROM hacks and custom NES cartridges designed to complement enhanced video and audio output. Their collection of reproduction titles and fan-made games revitalizes your gaming experience, with perks like free shipping and custom game creation services to boot.
FAQs
What are the advantages of upgrading my NES console with RGB modding?
RGB modding transforms your NES console by delivering true RGB video output, giving you a sharper, more vivid picture with the option to tweak color palettes to your liking. This upgrade lets your favorite games shine on modern displays, providing a clean, crisp image without compromising performance or creating visual glitches.
Beyond the enhanced visuals, RGB modding improves mono audio quality, creating a deeper and more engaging sound experience. It's the perfect way to rejuvenate your classic NES console while preserving its nostalgic appeal.
What should I consider when choosing an NES RGB modding service?
When choosing an NES RGB modding service, it's essential to prioritize quality, expertise, and reliable support to ensure your console gets the upgrade it deserves. Look for services that work directly with the original Picture Processing Unit (PPU). This helps retain the authentic video output while avoiding potential glitches. A top-tier service should also provide options for various color palettes, like NTSC, PC-10, or enhanced palettes, and include an upgraded audio amplifier to deliver improved sound quality.
It's also important to consider the provider's familiarity with your specific NES model, whether it's a front-loader or top-loader. This detail can significantly impact the installation's fit and durability. Make sure the pricing is transparent - typically ranging from $120 to $180 for a full installation - and check if the service includes a warranty and responsive customer support. At BJ’s Game Vault, we emphasize genuine hardware, skilled craftsmanship, and fast U.S. shipping, ensuring your modding experience is smooth and dependable.
What features can I add to enhance my RGB-modded NES console?
Upgrading an RGB-modded NES can take your retro gaming setup to the next level, blending nostalgic charm with modern enhancements. Most RGB mods include a clean installation of the NESRGB board, which delivers true RGB output, selectable color palettes, and improved audio quality. From there, you can explore additional upgrades to enhance your gaming experience.
One popular option is a stereo sound mod. This separates the audio channels, giving you clearer and more immersive sound - especially noticeable in games like Contra. Another audio upgrade to consider is an expansion audio board, which brings back the extra sound channels used in certain Famicom games and supports older peripherals.
For video improvements, a multi-output AV board is a great choice. It allows compatibility with SNES or N64-style cables, offering more flexibility for connecting to different displays. If you're looking for better reliability, swapping out the 72-pin cartridge connector can solve those frustrating loading issues. And for the ultimate upgrade, the Hi-Def NES HDMI kit lets you enjoy your favorite classics in up to 1080p resolution, all while keeping the original hardware intact.
To add a personal touch to your gaming setup, consider custom cartridges or ROM hacks. BJ’s Game Vault specializes in unique reproduction titles, rare ROM hacks, and even custom game creation services - perfect companions for your modded console. For the best results and to avoid potential risks, it’s wise to leave these upgrades to skilled professionals.
