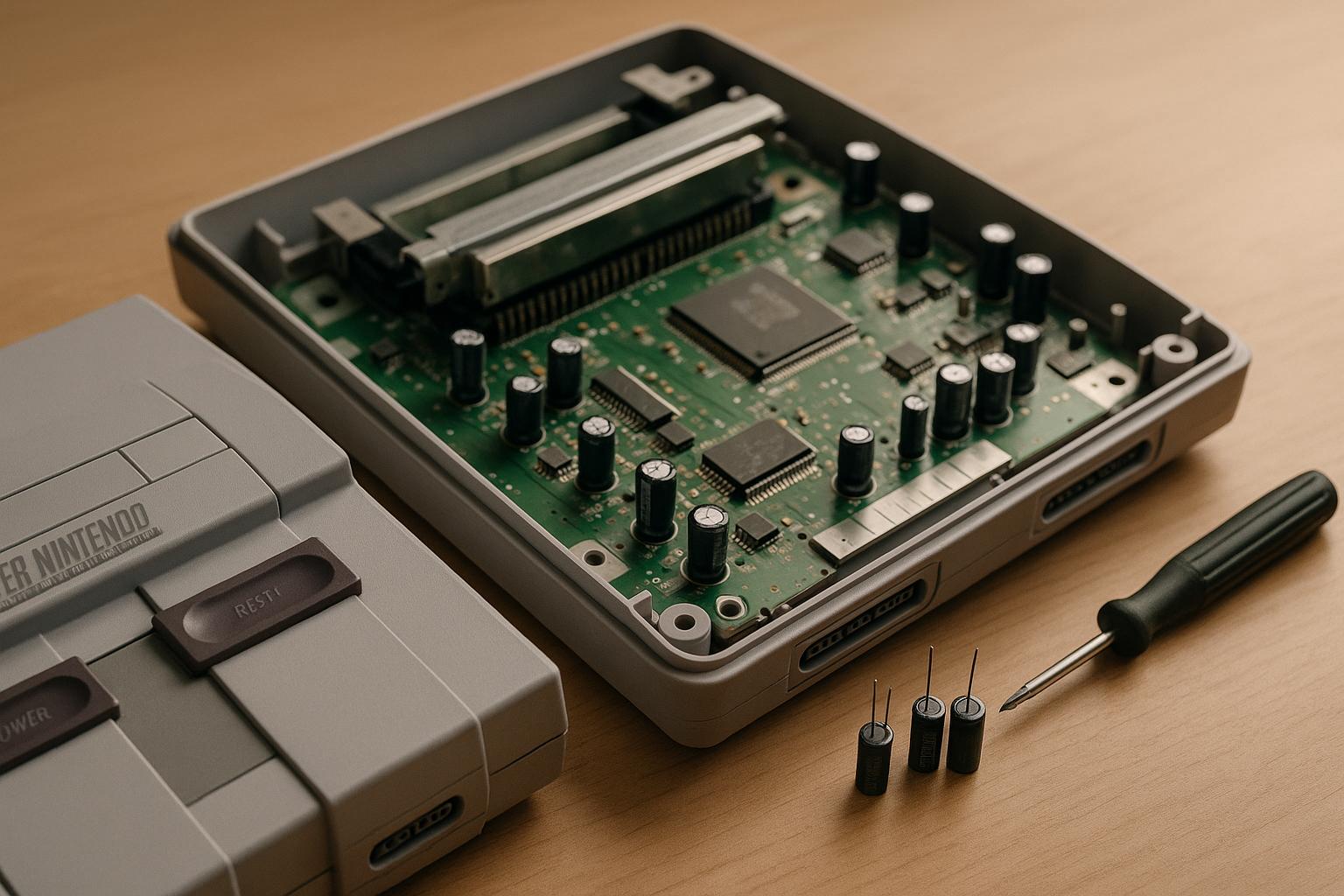

SNES Capacitor Replacement Guide
Replacing the capacitors in your SNES can restore its performance and extend its lifespan. Over time, the electrolytic capacitors in the console degrade, leading to issues like poor audio, distorted video, or power failure. This guide explains the tools you need, how to replace capacitors step-by-step, and tips for testing and maintaining your console.
Key Takeaways:
- Why capacitors fail: Aging, heat, and electrical stress cause wear, often after 30+ years.
- Signs of failure: Console won't power on, flickering video, distorted sound, or leaking capacitors.
- Tools needed: Soldering iron, desoldering pump, multimeter, flux, and isopropyl alcohol.
- Steps: Disassemble the console, carefully remove old capacitors, clean the board, and install replacements with correct polarity.
- Testing: Use a multimeter to confirm proper voltage and test the console with games before reassembly.
By following this process, you can bring your SNES back to working condition and enjoy retro gaming for years to come. Regular maintenance, proper storage, and using quality power supplies can help keep your console in great shape.
Super Nintendo (SNES) Electrolytic SMD Capacitor Replacement
Tools, Materials, and Preparation
Before diving into a capacitor replacement for your SNES, setting up your workspace and gathering the right tools is essential. A well-organized setup can save time and help avoid costly mistakes.
Required Tools and Equipment
To handle delicate electronics like the SNES, you'll need reliable tools. Start with a soldering iron with adjustable temperature for precise work. Pair it with a desoldering pump or braid to cleanly remove old solder. A multimeter is necessary for testing voltages and continuity, while an ESR (Equivalent Series Resistance) meter can check the condition of capacitors before and after installation.
For disassembly and handling small parts, have a set of Phillips and flathead screwdrivers and a pair of tweezers for positioning components. Tools like the Hakko FR-301 desoldering gun or a basic desoldering pump are also handy.
Safety is key. Use an anti-static mat and wear a wrist strap to prevent electrostatic discharge, which can damage the console's sensitive components. Work in a well-ventilated area, and wear safety glasses to protect your eyes from solder splashes.
Keep flux and isopropyl alcohol on hand. These are essential for creating clean solder joints and for cleaning the board afterward. Small details like these can significantly improve the quality of your repair.
Once your tools are ready, double-check that you have the correct capacitors for your SNES model before starting.
Capacitor Specs and Where to Buy Them
The specific capacitors you need depend on your SNES motherboard revision. For instance, the SNES Jr. uses a mix of aluminum electrolytic capacitors, such as 220µF 6.3V, 10µF 16V, 33µF 50V, 47µF 16V, and 2.2µF 50V.
Reliable suppliers like Console5 and Digi-Key offer pre-assembled capacitor kits for SNES models. Individual capacitors are affordable, typically ranging from $0.34 to $1.49 each.
| Component | Value | Voltage | Typical Price (USD) |
|---|---|---|---|
| C60 | 220µF | 6.3V | $0.37 |
| C59, C58 | 10µF | 16V | $0.42 each |
| C17, C16, C14 | 33µF | 50V | $0.47 each |
| C15 | 47µF | 16V | $0.34 |
| C9 | 2.2µF | 50V | $0.42 |
When replacing capacitors, always match the capacitance exactly and choose components with the same or higher voltage ratings. Online resources like Voultar's Wiki provide detailed capacitor maps and lists for specific SNES motherboard models. Many capacitor kits include extras, so don’t worry if you have a few left over after completing the repair.
Make sure to confirm your motherboard revision and gather the appropriate components before proceeding.
Setting Up Your Workspace Safely
A clean, organized workspace is critical for a smooth repair process. Choose a well-lit area, as good lighting reduces the risk of errors. A desk lamp or work light can make a big difference. Keep screws and capacitors sorted to avoid mixing up parts during the repair.
Static protection is non-negotiable. Use an anti-static mat and wear a grounded wrist strap to safeguard your SNES against electrostatic discharge.
Before starting, unplug the console and discharge any remaining electricity from the capacitors. Keep flammable materials away from your soldering station, and ensure proper ventilation. Be cautious around the hot soldering iron, and wash your hands after handling solder.
To simplify reassembly, label components and take photos during disassembly. Test each new capacitor with a multimeter or ESR meter before installation to ensure reliability. Keep a capacitor map for your specific motherboard revision close by to avoid mistakes during reinstallation.
With everything in place, you’re ready to begin the repair with confidence.
Step-by-Step Capacitor Replacement Process
With your workspace ready and tools in hand, follow these steps carefully to replace the capacitors in your SNES console.
Taking Apart the SNES Console
Start by unplugging the SNES and letting it sit for about 30 minutes to ensure any residual electricity is discharged.
Turn the console upside down and locate the six screws securing the bottom case. Most models use Phillips head screws, but some variations might have different types. Remove these screws and store them in a labeled container to keep track of them during the repair.
Carefully lift off the top shell. If it doesn’t come off easily, double-check that all screws have been removed. Once the shell is off, you’ll see the motherboard secured inside the lower casing.
Take photos of all cable connections to help with reassembly later. Disconnect all cables and remove the screws holding the motherboard in place. On some SNES models, you may also need to remove a metal shield to access certain capacitors.
Lift the motherboard by its edges and place it on an anti-static mat in a well-lit area for the next steps.
Removing Old Capacitors
Before you begin desoldering, use a capacitor map specific to your SNES motherboard revision to identify all capacitors that need to be replaced. Different SNES models may have capacitors in slightly different locations, and some might include additional capacitors on audio or AV daughterboards.
For through-hole capacitors, heat your soldering iron to about 350°F (175°C). Apply the tip of the iron to one solder joint at a time while using a desoldering pump or braid to remove the melted solder. Work on one lead at a time to avoid overheating the board.
Surface-mount capacitors require a more delicate technique. Heat one end of the capacitor with your soldering iron and gently lift that side using tweezers. Once one side is free, heat the other end and carefully remove the component. Work quickly but carefully to avoid prolonged heat exposure.
After removing each capacitor, clean the area thoroughly with isopropyl alcohol. Leaked electrolyte from failed capacitors often leaves a crusty or sticky residue, which must be completely removed. Use a cotton swab or soft brush to clean the area.
Inspect the solder pads after cleaning. Check for any lifted traces or damaged connections. If you notice any issues, address them before moving on to install the new capacitors.
Installing New Capacitors
With the old capacitors removed and the areas cleaned, it’s time to install the replacements. Make sure each new capacitor matches the capacitance and voltage ratings of the one you removed.
For electrolytic capacitors, polarity is crucial. The longer lead represents the positive terminal, while the shorter lead, often marked with a stripe or minus sign on the capacitor body, is negative. The PCB will have markings to indicate the correct orientation.
For through-hole capacitors, insert the leads into the appropriate holes, ensuring the capacitor sits flush against the board. Slightly bend the leads on the underside to hold the component in place. Heat both the lead and the solder pad at the same time, then apply solder until it flows smoothly and forms a solid joint.
Surface-mount capacitors require precision. Apply a small amount of flux to the solder pads, then position the capacitor correctly. Solder one end first, making sure the component stays aligned, then solder the other end. The capacitor should sit flat against the board without any gaps.
After soldering, trim any excess lead length from through-hole capacitors, leaving about 1/8 inch (3mm) of lead beyond the joint. Clean each solder joint with isopropyl alcohol to remove any flux residue.
Finally, test each newly installed capacitor with a multimeter to confirm the proper capacitance values. This step can save you troubleshooting time later. Ensure all solder joints are shiny and secure before moving on to reassemble the console.
sbb-itb-9a4764e
Testing and Reassembling the Console
Testing After Replacement
Before putting everything back together, take a close look at the motherboard. Check for any solder bridges, cold joints, or components that may not be aligned properly.
Start by turning the power off. Attach the black lead of your multimeter to a ground point and test for continuity. Then, power on the console and measure key points - look for about 5V at the regulator's output and 10V at the input. Be cautious during this step to avoid accidentally shorting any components.
Next, connect the console to a TV and speakers to test the audio and video output. If you see clear video and hear consistent audio, it’s a good sign that the capacitor replacement was successful. For an extra layer of confirmation, use an ESR meter (if available) to measure the capacitance and resistance of the newly installed capacitors while they’re in the circuit.
Once the electrical tests confirm everything is functioning as it should, you’re ready to reassemble the console.
Putting the Console Back Together
Carefully place the motherboard back into the console, ensuring all connectors are properly aligned. Tighten the screws securely, but don’t overdo it - too much force could cause damage.
Reconnect all cables and daughterboards, using any photos you took during disassembly as a guide. Double-check that all connectors are fully seated and that no wires are being pinched when you close the case.
If you removed any metal shielding during the repair, make sure to reinstall it. This shielding is essential for grounding and reducing electromagnetic interference. Before sealing the case completely, do a final inspection to confirm that every screw, shield, and connection is secure.
Final Function Test
With the console reassembled, insert a reliable SNES game cartridge and hook it up to your TV and speakers. Power it on and check for clear video output and stable audio. Test the system further by playing a game and ensuring all controller inputs respond correctly.
To be thorough, try several different game cartridges. This helps confirm that the system performs consistently, as different games can place varying demands on the hardware. Reliable performance across multiple titles is a strong indicator that the repair was a success.
Keep an ear out for odd sounds like buzzing or crackling and an eye out for video issues such as rolling, flickering, or color distortions. These could point to lingering issues with the capacitors or other components.
If everything checks out, congratulations - your capacitor replacement has restored your SNES! The fresh capacitors should improve power filtering, leading to sharper video and more stable audio compared to the degraded performance you may have experienced before.
To keep your SNES running smoothly, store it in a cool, dry place, and consider using a surge protector to protect the new capacitors. With proper care, your console should deliver many more years of retro gaming fun.
Troubleshooting Common Issues
Even with proper capacitor installation, occasional issues can crop up that require careful troubleshooting. Most of these problems can be resolved with a systematic approach.
No Power After Replacement
If your SNES refuses to power on after a capacitor replacement, start by checking for reversed capacitor polarity or solder bridges. Make sure the longer lead of each capacitor connects to the positive pad on the board. Pay close attention to C60 (220 µF, 6.3V) - this capacitor is essential for the power supply to function properly. Use magnification to inspect for accidental solder bridges between pads, and if you spot any, clean them up with desoldering braid.
Next, test the voltage regulator. When the console is powered on, the regulator should output approximately 5V and receive about 10V at the input. If these readings are off, the regulator likely needs to be replaced. Once power is restored, move on to testing audio and video functionality.
Audio or Video Problems
If you’re experiencing sound or picture problems, the issue is likely within specific circuits. For audio, focus on C1 (47 µF) and C2, C3 (10 µF each), as these capacitors handle output and filtering. Symptoms like distortion, crackling, or no sound at all often indicate faults in these components.
For video issues - such as rolling screens, flickering, or color distortions - concentrate on the video processing circuits. Use an ESR meter to test capacitors in-circuit for capacitance and equivalent series resistance. Also, inspect for cold solder joints, which typically look dull or cracked. Reflow any suspect joints by applying heat with your soldering iron and adding a bit of fresh solder.
Always double-check that your replacement capacitors match the original specifications. Even small differences in capacitance or voltage ratings can lead to performance problems.
Random or Unstable Operation
If the console behaves erratically, beyond power, audio, or video issues, dig deeper. Closely inspect every solder joint under magnification. Good solder joints should be shiny, smooth, and fully surround the component leads. Reflow any joints that look dull, cracked, or incomplete.
Damaged traces on the circuit board can also cause intermittent issues. Overheating during repairs can weaken copper pathways. Use a multimeter to test nearby traces for continuity. Additionally, trim capacitor leads to about 1/8 inch above the solder joints to avoid accidental shorts.
Finally, check all ribbon cables and connectors to ensure they’re securely seated. Loose connections can mimic capacitor-related problems. If problems persist, clean the entire board with isopropyl alcohol to remove flux residue. This can help uncover subtle issues like hairline cracks or damaged components.
Conclusion and Long-Term Maintenance Tips
Key Points from Capacitor Replacement
Replacing SNES capacitors successfully requires precision and care at every stage. From disassembling the console with proper labeling to safely desoldering old capacitors and installing new ones with the correct polarity, every step matters. Taking the time to handle each task carefully prevents damage and ensures the console operates reliably.
Using high-quality capacitors can make a noticeable difference. They restore stable power delivery, enhance audio and video performance, and help prevent future issues like leakage or component failure. Plus, they extend the life of your SNES while reducing the risk of damage to other parts. If you encounter leaked electrolyte, clean it thoroughly with isopropyl alcohol before installing the new capacitors. Always double-check your work with a final function test before putting the console back together.
Investing in the right tools and techniques is worth it. Testing your console with various games and accessories ensures everything works as it should. Using a multimeter to measure voltage at key points confirms electrical stability. These steps not only repair your SNES but also set it up for long-term reliability.
Long-Term Care Advice
Now that your SNES is up and running, a little ongoing care will keep it performing well for years to come. Store it in a cool, dry, and climate-controlled space to protect it from environmental damage. Avoid stacking heavy items on it, and use anti-static bags if you need to pack it away.
Regular maintenance is key. Check periodically for any signs of corrosion or capacitor leakage, especially if it hasn’t been used for a while. Test the power supply to ensure stable voltage output, and clean the cartridge slot and connectors as needed. Running the console occasionally keeps the internal components active and can help you catch potential problems early.
To protect your restored SNES, use surge-protected outlets and high-quality power adapters. Cheap or unreliable power supplies can cause voltage fluctuations that stress the capacitors and other components, so it’s worth investing in better options.
Improving Your Retro Gaming Setup
A properly maintained SNES doesn’t just work better - it creates the perfect foundation for an enhanced retro gaming experience. With your console restored, you can explore quality accessories and expand your game library. BJ's Game Vault offers retro-tested games, custom cartridges, and accessories designed to work seamlessly with original hardware. Their products go through rigorous testing and come with a Collector's Guarantee for added peace of mind.
If you’re looking to expand your gaming options, check out their Authentic Retro Hacks and custom cartridges. These fan-made creations and reproduction titles introduce new content and unique gameplay experiences, pushing the boundaries of your console’s capabilities.
BJ's Game Vault also offers a variety of gaming accessories, plush collectibles, and custom game creation services to complement your retro setup. With products tested for compatibility with real consoles, you can confidently grow your collection and enjoy your SNES to the fullest. Whether you’re diving into classic favorites or exploring new adventures, your restored console is ready for anything.
FAQs
How can I tell if the capacitors in my SNES need to be replaced?
Over the years, the capacitors in your SNES can wear out, causing a range of performance problems. Common signs include distorted audio, visual glitches, or the console struggling to power on. More serious indicators might be leaking capacitors or even a burnt smell coming from the device - both clear signs of damage.
If you notice any of these symptoms, it's worth checking the capacitors and replacing them if needed. This can help protect your console from further harm and get it back to running smoothly.
How do I find the correct replacement capacitors for my SNES model?
To make sure you're using the right replacement capacitors for your SNES, the first step is identifying your console's exact model. SNES models can differ depending on the region and production batch, so this is an important detail. Check for model numbers or markings, typically found on the bottom of the console or inside the casing.
Once you've pinpointed your model, refer to the service manual or a trusted capacitor replacement guide to find the proper specifications. Pay attention to key details like capacitance (measured in microfarads, µF), voltage rating (V), and physical dimensions to ensure the new capacitors are a perfect fit. If you're uncertain, a capacitor kit specifically designed for SNES consoles can simplify the process, as these kits usually include everything you need.
For retro gaming enthusiasts, stores such as BJ's Game Vault offer retro-tested items and custom game services, making it easier to keep your console running smoothly while enjoying your favorite classic games.
What steps should I take to safely replace the capacitors in my SNES without causing damage?
To safely replace the capacitors in your SNES, keep these precautions in mind:
- Set up a static-free workspace: Protect your console's components by working in an area free of static electricity. Use an anti-static wrist strap for added safety.
- Disconnect and discharge: Unplug your SNES from any power source and give it time to discharge completely. This reduces the risk of electric shock and prevents damage to the circuit board.
- Use proper tools: Equip yourself with a reliable soldering iron, desoldering tools, and the exact replacement capacitors needed. Using incorrect tools or parts can create more problems.
- Handle components carefully: Be gentle with the circuit board. Avoid touching sensitive parts, and use precision tools to prevent accidental damage.
Following these steps will help you replace the capacitors safely while keeping your SNES in good working condition.
